Gelei Cables is a professional company specializing in the production and manufacture of communication cables and power transmission conductor materials.
English
Application:
1.Lan Cable
2.Power Cable
3.Control Cable
4.Conductor for coaxial cables
5.Construction wiring
6.Bus-bar
7.Fuse
8.RF shielded cable
9.Extension-cord
Advantage:
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
CCA Wire (AWG) Note: | ||||
TechnicalCharacteristics | Clad type | |||
10H | 10A | 15H | 15A | |
Size range | 0.12mm-8.00mm | 0.12mm-8.00mm | 0.12mm-8.00mm | 0.12mm-8.00mm |
Copper content (by weight) | 25%-31% | 25%-31% | 32%-40% | 32%-40% |
Resistivity (max at 20℃) | 0.02743 Ω. mm²/m | 0.02743 Ω. mm²/m | 0.02676 Ω. mm²/m | 0.02676 Ω. mm²/m |
Density | 3.32g/cm² | 3.32g/cm² | 3.63g/cm² | 3.63g/cm² |
Conductivity (max at 20℃) | 62% | 62% | 64% | 64% |
Elongation | 1%-3% | 8%-25% | 1%-3% | 8%-25% |
Tensile Strength | ≥250Mpa | ≥110Mpa | ≥250Mpa | ≥110Mpa |

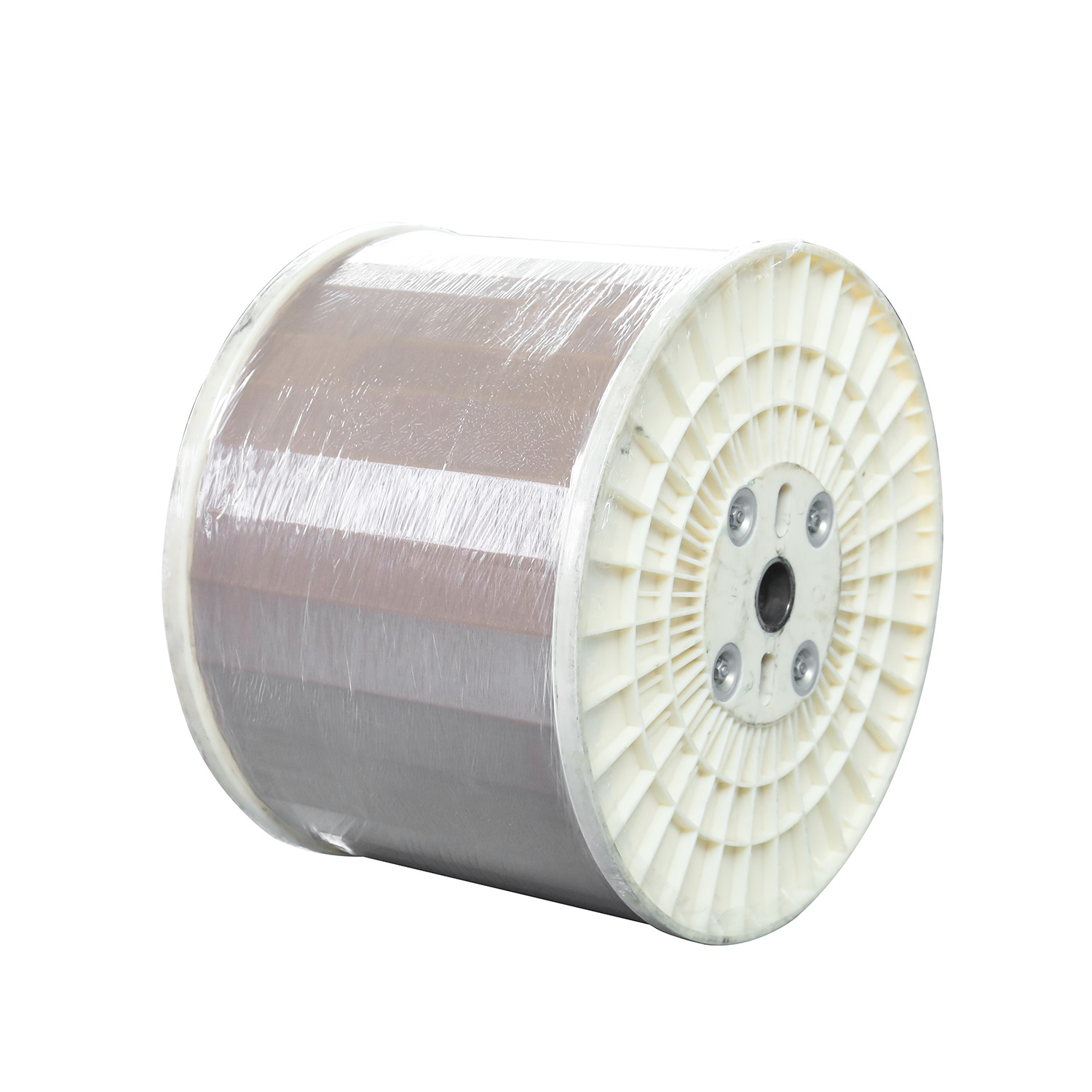

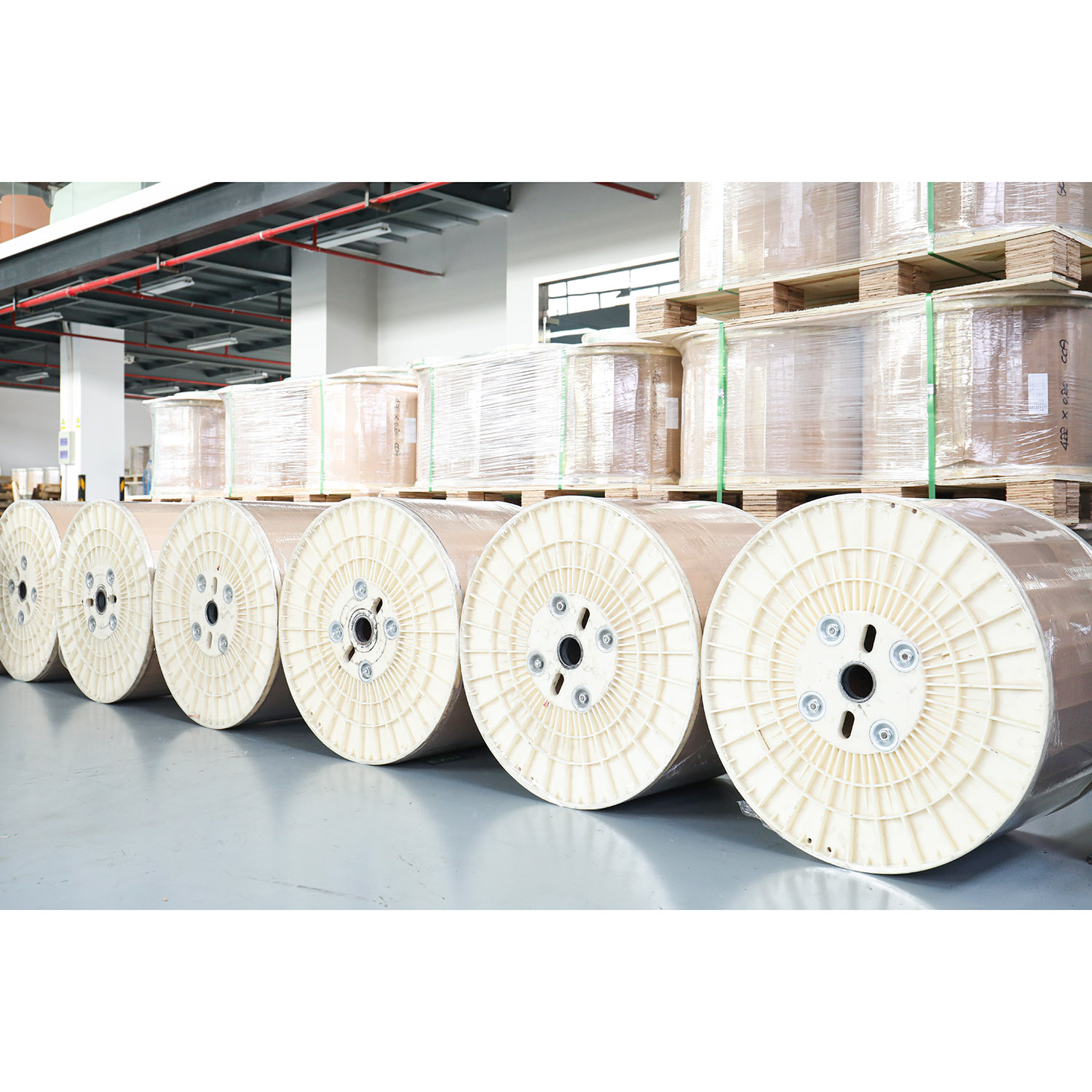

Packaging Details:
NO. | DIN130MM | DIN185MM | DIN250MM | DIN400MM | DIN800MM |
A | 130MM | 185MM | 250MM | 400MM | 800MM |
B | 65MM | 130MM | 160MM | 160MM | 370MM |
C | 100MM | 160MM | 160MM | 260MM | 490MM |
D | 120MM | 180MM | 200MM | 290MM | 520MM |
E | 21MM | 31MM | 31MM | 56MM | 126MM |
Application:
1.Lan Cable
2.Power Cable
3.Control Cable
4.Conductor for coaxial cables
5.Construction wiring
6.Bus-bar
7.Fuse
8.RF shielded cable
9.Extension-cord
Advantage:
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
CCA Wire (AWG) Note: | ||||
TechnicalCharacteristics | Clad type | |||
10H | 10A | 15H | 15A | |
Size range | 0.12mm-8.00mm | 0.12mm-8.00mm | 0.12mm-8.00mm | 0.12mm-8.00mm |
Copper content (by weight) | 25%-31% | 25%-31% | 32%-40% | 32%-40% |
Resistivity (max at 20℃) | 0.02743 Ω. mm²/m | 0.02743 Ω. mm²/m | 0.02676 Ω. mm²/m | 0.02676 Ω. mm²/m |
Density | 3.32g/cm² | 3.32g/cm² | 3.63g/cm² | 3.63g/cm² |
Conductivity (max at 20℃) | 62% | 62% | 64% | 64% |
Elongation | 1%-3% | 8%-25% | 1%-3% | 8%-25% |
Tensile Strength | ≥250Mpa | ≥110Mpa | ≥250Mpa | ≥110Mpa |
Packaging Details:
NO. | DIN130MM | DIN185MM | DIN250MM | DIN400MM | DIN800MM |
A | 130MM | 185MM | 250MM | 400MM | 800MM |
B | 65MM | 130MM | 160MM | 160MM | 370MM |
C | 100MM | 160MM | 160MM | 260MM | 490MM |
D | 120MM | 180MM | 200MM | 290MM | 520MM |
E | 21MM | 31MM | 31MM | 56MM | 126MM |
